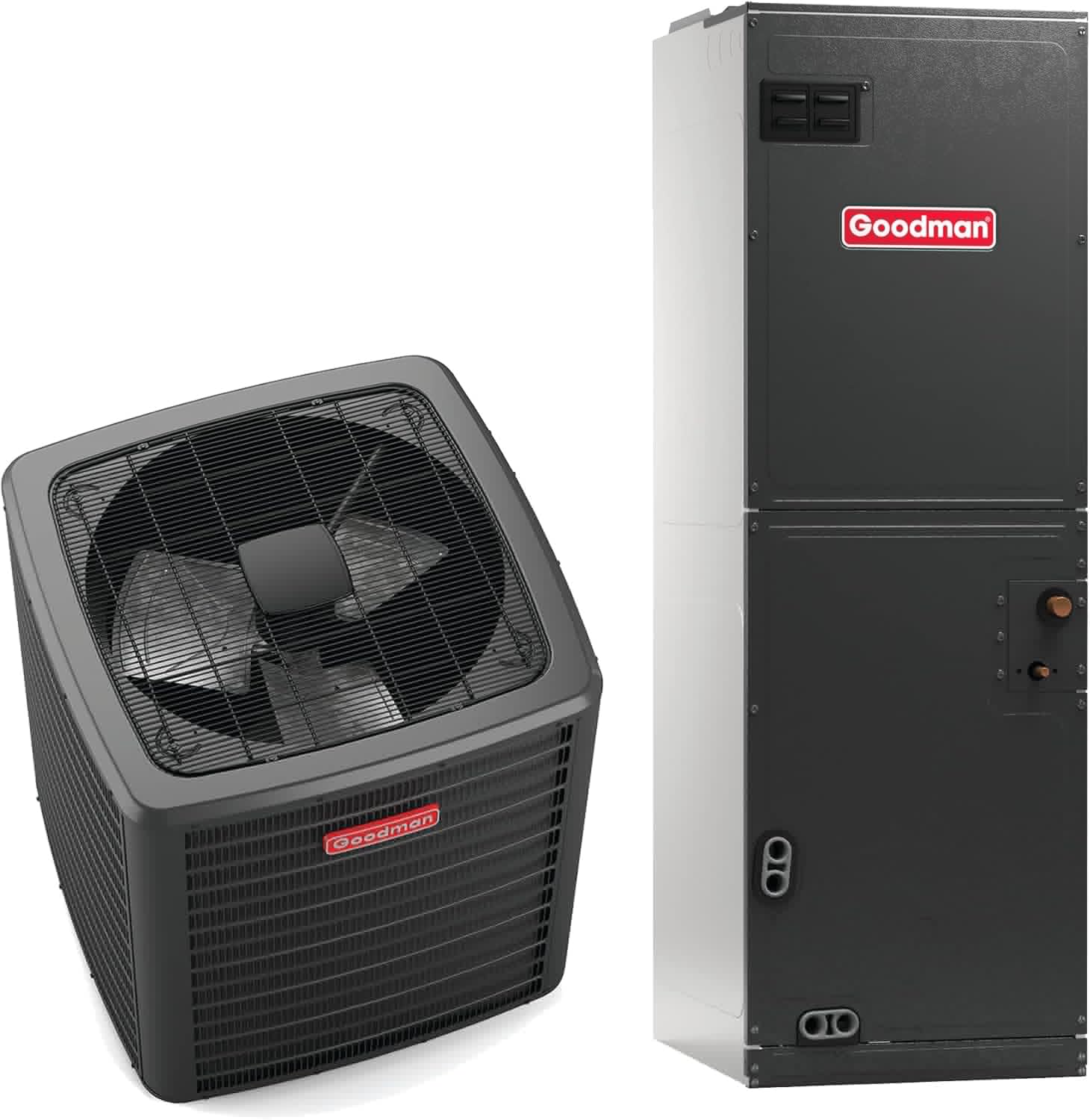

GOODMAN R-32 3 Ton 15.2 SEER2 Heat Pump Split System – GLXS5BA3610, AMST36CU1300

GOODMAN R-32 3 Ton 15.2 SEER2 Heat Pump Split System – GLXS5BA3610, AMST36CU1300

(5 customer reviews)

The Goodman GLXS5BA3610 Split Air Conditioner is a 3-ton, 15.2 SEER2 rated, single-stage cooling system designed for high efficiency with R-32 refrigerant. It features a durable galvanized steel cabinet, high-efficiency scroll compressor, and is fully charged for easy installation. With service valves, enclosed contactor, and high-pressure switch, this unit ensures reliable performance. The AMST36CU1300 Air Handler offers a nine-speed ECM motor, high-efficiency all-aluminum coil, and flexible multi-position installation. Both units are AHRI Certified and ETL Listed, designed for quiet, efficient operation with durable construction.

$4,002.00

-

SKU: GLXS5BA3610, AMST36CU1300 Category: Tags: , , , , , ,
Guaranteed Safe Checkout

GOODMAN R-32 3 Ton 15.2 SEER2 Heat Pump Split System – GLXS5BA3610, AMST36CU1300:-

Product Goodman GLXS5BA3610 AMST36CU1300
Description Goodman Split Air Conditioner, 15.2 SEER2, Single Stage, 3 Ton, Non-Communicating AMST Ducted Multi-position Air Handler, Nine Speed ECM Motor, 2-5 Ton, with TXV Expansion
Refrigerant Type R-32 R-32
Unit Height 39.5 in 49 in
Unit Width 35.5 in 21.125 in
Unit Depth 35.5 in 21 in
Communication Feature Type Non-Communicating –
Max Overcurrent Protection 30 A 15 A
Power Phase 1 Ph 1 Ph
Power Voltage 208/230 V 208/230 V
Compressor Stages Single Stage –
Compressor Type Scroll –
Tonnage 3 3
Cooling Capacity Nominal – 36,000 Btu/H
Motor Speed Type – Nine Speed ECM
Unit Weight – 153 lb
Product Benefits – High-efficiency scroll compressor
– Factory-installed filter drier
– Fully charged for 15′ tubing length
– Copper tube/enhanced aluminum fin coil (5mm on 1.5-3.0T)
– Service valves with sweat connections and easy gauge ports
– Enclosed contactor with lug connection
– Ground lug connection
– High-pressure switch
– AHRI Certified & ETL Listed		 – All-Aluminum tube/aluminum fin coil
– Direct-drive, 9-speed ECM motor
– Available without heat or with sequence-controlled nickel chromium heating elements (5-10 kW)
– High-efficiency evaporator coil
– Quiet operation
– Primary/secondary drain connection in high-temp plastic drain pan
– Suitable for non-ducted return air
– Galvanized-steel construction
– Factory-installed pull-type disconnect
– Easy service access
– AHRI Certified & ETL Listed
Cabinet Features – Removable grille-style top design (UL 60335-2-40 compliant)
– Heavy-gauge galvanized steel cabinet
– Attractive Architectural Gray powder-paint finish (500-hour salt-spray approval)
– Steel louver coil guard
– Single-panel access to controls with space for field-installed accessories
– Meets 2023 Florida Building Code for hurricane-type winds (when anchored)		 – Rigid SmartFrame cabinet
– Horizontal or vertical configuration
– 21” depth for easier attic access
– DecaBDE-free thermoplastic drain pan
– Screw-less sides and back to reduce condensation
– Foil-faced insulation for reduced cabinet condensation
– Galvanized, leather grain-embossed finish
– Glue-less insulation retention
– Tool-less filter access
Weight 153 lbs
Dimensions 39.5 × 35.5 × 35.5 in
Brand/Manufacturer

Refrigerant Type

R-32
System Tonnage

SEER2 (Efficiency)

Compressor

Scroll
Cooling BTU's

36,000 BTU's
Motor Speed Type

Nine Speed ECM
