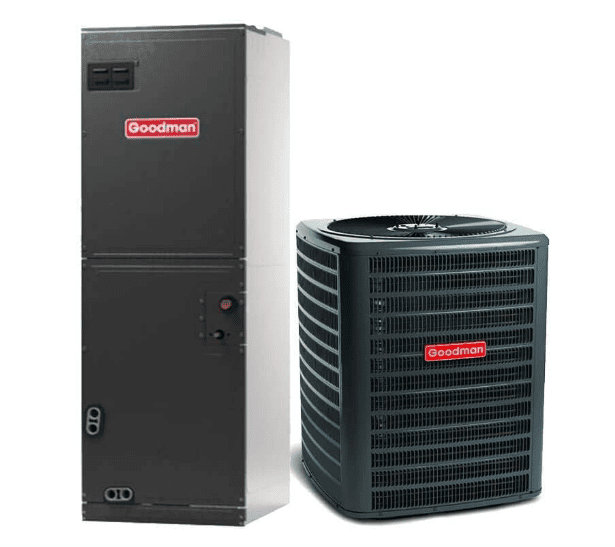

The Goodman GLXS5BA2410 is a 2-ton, 15.2 SEER2 split air conditioner designed for efficient cooling with R-32 refrigerant. It features a single-stage scroll compressor and operates on a 208/230V, single-phase power supply. The unit has a compact design with dimensions of 32 inches in height, 29 inches in width, and 29 inches in depth. It is non-communicating and requires a maximum overcurrent protection of 20A.
The Goodman AMST24BU1300 is a 2-ton, multi-position, multi-speed air handler with an internal TXV for enhanced refrigerant control. It also uses R-32 refrigerant and operates on a 208/230V, single-phase power supply. The unit features a nine-speed ECM motor for efficient airflow control and has a nominal cooling capacity of 24,000 Btu/h. With dimensions of 45 inches in height, 17-9/16 inches in width, and 21 inches in depth, it requires a maximum overcurrent protection of 15A and weighs 112 lbs.
| Goodman 2 Ton Air conditioner & Air handler system – GLXS5BA2410,AMST24BU1300 | ||
| Specification | GLXS5BA2410 (Outdoor Unit) | AMST24BU1300 (Air Handler) |
| Refrigerant Type | R-32 | R-32 |
| Unit Height | 32 in | 45 in |
| Unit Width | 29 in | 17-9/16 in |
| Unit Depth | 29 in | 21 in |
| Cooling Capacity Nominal | N/A | 24,000 Btu/H |
| Communication Feature Type | Non-Communicating | N/A |
| Max Overcurrent Protection | 20 A | 15 A |
| Power Phase | 1 Ph | 1 Ph |
| Power Voltage | 208/230 V | 208/230 V |
| Compressor Stages | Single Stage | N/A |
| Compressor Type | Scroll | N/A |
| Motor Speed Type | N/A | Nine Speed ECM |
| Tonnage | 2 Ton | 2 Ton |
| Model Efficiency | 15.2 SEER2 | N/A |
| Unit Weight | 167 lb | 112 lb |
| TXV (Thermal Expansion Valve) | N/A | Internal TXV |
| Weight | 167 lbs |
|---|---|
| Dimensions | 29 × 29 × 32 in |
| Brand/Manufacturer | |
| Compressor | Scroll |
| System Tonnage | |
| Blower Motor | Nine speed ECM |
