Daikin 15 Ton Light Commercial Packaged Gas/Electric 260K BTU 14 IEER 208-230V 3-Phase -DFG1803DL00001S

Daikin 15 Ton Light Commercial Packaged Gas/Electric 260K BTU 14 IEER 208-230V 3-Phase -DFG1803DL00001S

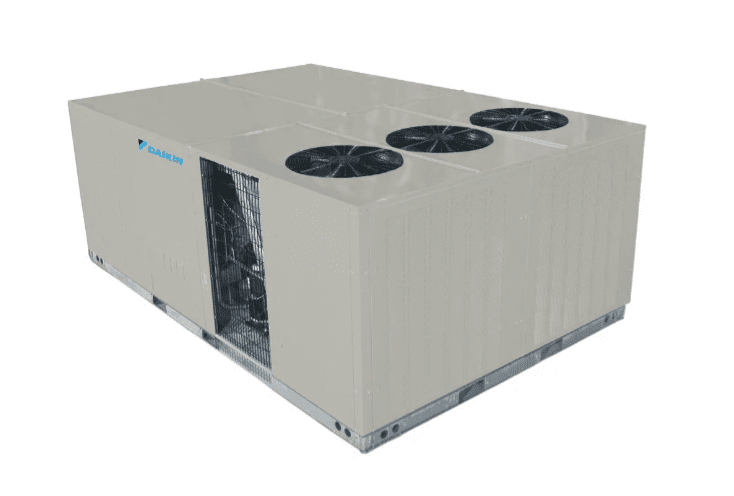

The Daikin DFG1803DL00001S Light Commercial Packaged Air Conditioner and Gas Furnace offers efficient heating and cooling in a compact, all-in-one unit. Designed for installation on rooftops or at ground level, it supports both horizontal and downflow airflow configurations. Its galvanized steel cabinet, coated with UV-resistant paint, ensures reliable operation in all weather conditions. The unit provides multiple drive options to suit various design requirements, ensuring flexibility to meet diverse application needs. Factory-installed pressure switches are included as standard, simplifying installation and enhancing operational reliability.

  • Energy-efficient scroll compressor
  • Copper tube/aluminum fin coils
  • High and low pressure switches
  • High-capacity and steel-cased filter drier
  • Built-in filter rack with standard 2-inch filters
  • 24-volt terminal strip
  • Convertible airflow: horizontal or downflow application
  • AHRI Certified; ETL Listed

$20,062.00

SKU: DFG1803DL00001S Categories: , Tags: , , , , , ,
Guaranteed Safe Checkout
Daikin 15 Ton Light Commercial Packaged Gas/Electric 260K BTU 14 IEER 208-230V 3-Phase -DFG1803DL00001S
Brand Daikin
Total, BTU/h 172,000
No. of Burners 6
Thermal Efficiency (T.E.) 81%
AFUE N/A
Motor Type Direct Drive
Wheel Dia. x Width 15×15
RPM 300-1600
Indoor Horsepower 3.5
Drain Size (NPT) 1″
RPM (High/Low stage) 1122
Outdoor Horsepower 1/3
Fan Diameter/ # Fan Blades 22 / 3
Face Area (ft²) 25.9
Compressor RLA / LRA 25.0 / 164.0
Voltage-Phase-Frequency 208/230-3-60
Indoor Blower FLA 10.9-10.2
Outdoor Fan FLA 2
Low-VoltageConduit Hole Dia. (in) 0.5
Operating Weight (lbs) 1910
Model # DFG1803DL00001S
EER / IEER 10.8/14
Heat Range Low
High Stage Input / Output (KBTU/H) 260 / 210.6
Low Stage Input / Output (KBTU/H) 195 / 157.95
High Stage Temperature Rise Range (°F) 25-55
Low Stage Temperature Rise Range (°F) 15-45
External Static Pressure (ESP) Standard
Indoor Nominal CFM 5000
Filter Size (in) 20 X 20 X 2 (8)
R-410A Refrigerant Charge (oz.) 128/109
Evaporator Coil Face Area (ft²) 21.69
Rows Deep/ Fins per Inch 2 / 18
Quantity of Condenser Fan Motors 3
Rows Deep / Fins per Inch 1 / 23
Compressor Quantity / Type / Stages 2/ Scroll / 1
Max External Static (In. W.C.) 1.2
Min. Circuit Ampacity¹ 84/84
Max. Overcurrent Protection (A)² 100/100
Power Supply Conduit Hole Dia. (in) 2.5
Ship Weight (lbs) 2025
Weight 1910 lbs
Brand/Manufacturer

Voltage

208/230 3-Phase
IEER

14
BTU

260000 BTU
