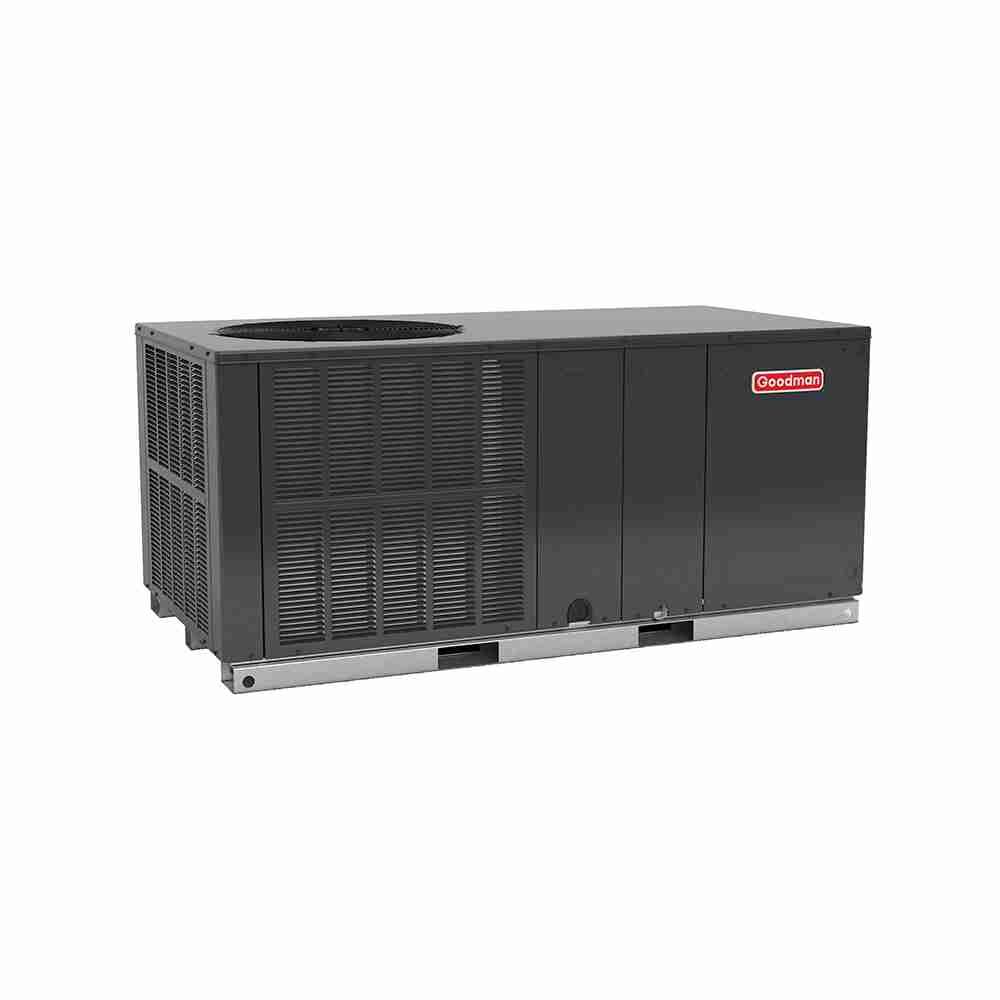

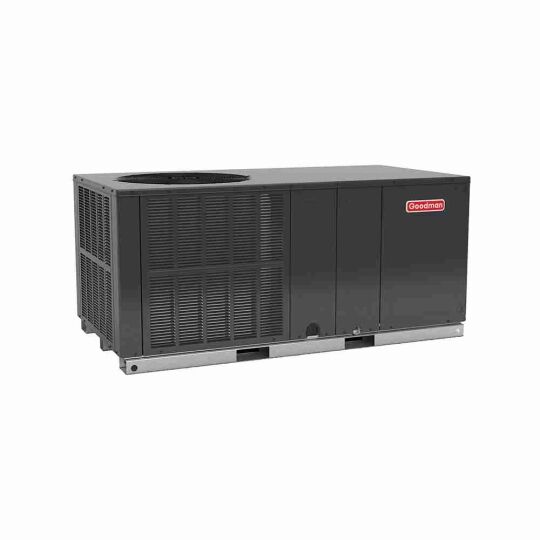

Goodman’s packaged units offer an all-encompassing comfort solution for residential settings, and the GPHH5 exemplifies this efficiency. This unit seamlessly integrates a Goodman heat pump, evaporator coil, and Multi-speed ECM blower, providing effective heating and cooling from a singular source. With a scroll compressor ensuring consistent refrigerant flow and Goodman’s superior coil design guaranteeing high efficiency in both heating and cooling modes, the GPHH5 stands out. Adding to its appeal, the unit features convenient access panels, simplifying the installation and maintenance processes. Elevate your comfort experience today with the streamlined efficiency and superior design of the Goodman GPHH5 packaged unit.
5 in stock
| 4 Ton 15.2 SEER2 Goodman Two Stage Scroll Ducted Packaged Heat Pump – GPHH54841 | |
| Installation Type | Ducted |
| Pallet Qty | 1 |
| Cooling Capacity – (Nominal) | 46000 Btu/H |
| Heating Capacity – (Nominal) | 44000 Btu/H |
| SEER (HSVTC) | 16 |
| Cooling Operation Range – (Std. Max) | 115 °F |
| Cooling Operation Range – (Std. Min) | 65 °F |
| Heating Operation Range – (Std.Max) | 65 °F |
| Heating Operation Range – (Std.Min) | -10 °F |
| Rated Cooling Condition – (Ambient DB) | 95 °F |
| Rated Cooling Condition – (Room DB) | 80 °F |
| Rated Heating Condition – (Ambient DB) | 47 °F |
| Rated Heating Condition – (Room DB) | 70 °F |
| Compressor LRA | 104 A |
| Compressor RLA | 21.2 A |
| Indoor Blower FLA | 5.4 A |
| Max Overcurrent Protection | 50 A |
| Max Voltage | 253 V |
| Min. Circuit Amps | 33.3 A |
| Min. Voltage | 197 V |
| Outdoor Fan FLA | 1.4 A |
| Power Frequency | 60 Hz |
| Power Phase | 1 Ph |
| Power Voltage | 208/230 V |
| Rated Load Amps | 21.2 A |
| Air Flow Rate (High) – Cooling | 1600 ft³/min |
| Air Flow Rate (High) – Heating | 1600 ft³/min |
| Blower Motor RPM | 1400 r/min |
| Compressor Stages | Two Stage |
| Compressor Type | Scroll |
| Condenser Fan RPM | 1075 r/min |
| Dimensions – (Blower Diameter) | 10 in |
| Dimensions – (Blower Width) | 8 in |
| Dimensions – (Evap Wheel Diameter) | 10 in |
| Dimensions – (Evap Wheel Width) | 8 in |
| Expansion Device | TXV |
| External Static Pressure – (Rated) | 0.58 |
| Motor Speed Type | Variable Speed ECM |
| Number of Speeds | 5 |
| Sound Pressure (High) – Cooling | 80 dBA |
| Condenser Fan Horsepower | 1/4 metric hp |
| Cooling Capacity – (Rated) | 46000 Btu/H |
| Cooling Capacity – (Sensible) | 35500 Btu/H |
| Heating Capacity – (Rated) | 44000 Btu/H |
| Tonnage | 4 |
| Condensate Drain Outlet | 3/4 in |
| Factory Std. Refrigerant Charge | 170 oz |
| Pipe Size Gas | 7/8 in |
| Pipe Size Liquid | 3/8 in |
| Refrigerant Type | R-410A |
| Proposition 65 Label | Yes |
| Dimensions – (Case Depth) | 68.00 in |
| Dimensions – (Case Height) | 35.00 in |
| Dimensions – (Case Width) | 35.00 in |
| Weight – (Case) | 430.090 lb |
| Weight | 430.09 lbs |
|---|---|
| Dimensions | 68 × 35 × 35 in |
| Brand/Manufacturer | |
| Compressor | Scroll |
| Cooling BTU's | 46,000 BTU's |
| Heating BTU's | |
| Installation Configuration | Horizontal |
| SEER2 (Efficiency) | |
| System Tonnage |
