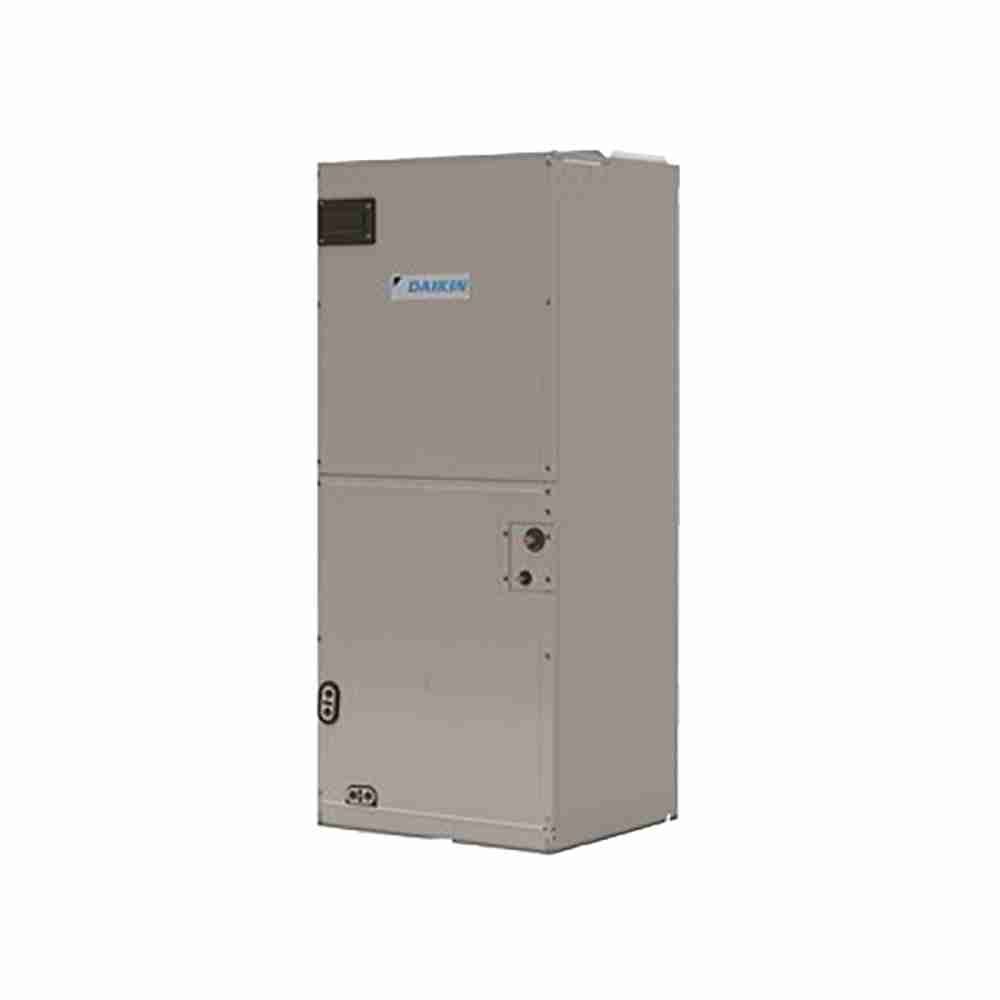

2.5 Ton 16 SEER Daikin FTQ SkyAir 30,000 BTU Indoor Air Handling System – FTQ30TAVJUD
The Daikin FTQ Ducted systems are engineered to excel in challenging low ambient conditions, ensuring reliable heating down to -4°F (-20°C) without requiring supplemental electric heat. This innovative design not only simplifies installation and operational costs but also guarantees efficient year-round performance. With versatile configurations and a compact build, the FTQ series fits seamlessly into tight spaces. Additionally, its superior air handling capabilities, minimal air leakage, and compatibility with various accessories make it an ideal choice for tailored comfort solutions.
$3,791.00
-
5 in stock
| 2.5 Ton 16 SEER Daikin FTQ SkyAir 30,000 BTU Indoor Air Handling System – FTQ30TAVJUD | |
| Power supply | 1 phase, 208/230 V, 60 Hz |
| Cooling Capacity | 30000 Btu/h, 8.8 kW |
| SEER (Rated) | 16.0 |
| EER (Rated) | 12.5 Btu/h-W |
| Color | Daikin Slate Gray |
| Voltage Range | 187 to 253 V |
| Minimum Circuit Amps | 4.9 A |
| Max. Overcurrent Protective Device | 15 A |
| Phase | 1 |
| Indoor Fan Motor – Rated Output | 1/2 hp |
| Indoor Fan Motor – Full Load Amps | 3.9 A |
| Cooling Input Power | 407 W |
| Heating Input Power | 407 W |
| Coil Type | Cross Fin Coil |
| Coil Face Area | 3.75 ft², 35 m² |
| Fan Type | Sirocco FC Centrifugal |
| Fan Motor Output | 0.5 hp |
| Fan Air Flow Rate (H) | 1000 ft³/min, 28.3 m³/min |
| Fan Air Flow Rate (M) | 850 ft³/min, 24.1 m³/min |
| Fan Air Flow Rate (L) | 700 ft³/min, 19.8 m³/min |
| Fan External Static Pressure | 0.1 to 0.9 in·WG |
| Piping connections – Liquid | 3/8 in, 9.5 mm |
| Piping connections – Gas | 5/8 in, 15.9 mm |
| Piping connections – Drain | 3/4 in, 19.1 mm |
| Depth | 21 in, 533 mm |
| Width | 17 1/2 in, 445 mm |
| Height | 45 in, 1143 mm |
| Weight | 52.5 kg, 115 lb |
| Weight | 115 lbs |
|---|---|
| Dimensions | 21 × 17.5 × 45 in |
| Brand/Manufacturer | |
| Cooling BTU's | 30,000 BTU's |
| Installation Configuration | Downflow, Horizontal |
| SEER (Efficiency) | |
| System Tonnage |
